AXP152

Highly integrated PMIC with 4 DC/DC Buck Converters and 7 LDOs

FEATURES
  • 3V~5.5V Input Operating Range

  • 15uA Off-Mode Current

  • Support TWSI (Two Wire Serial Interface)

  • 4 Buck DC/DC Step Down Converters

      - DC-DC1PFM/PWM mode,scaling in 1.7-3.5V, 50mV/step,Output current 1A

      - DC-DC2PFM/PWM mode,scaling in 0.7-2.275V,25mV/step, Output current 2A, DVM

      - DC-DC3PFM/PWM mode,scaling in 1.7-3.5V, 50mV/step,Output current 1.2A

      - DC-DC4PFM/PWM mode,scaling in 1.7-3.5V, 25mV/step,Output current 1.2A

  • 7 LDOs

    - LDO0:Output current 1.5A,Internal 500/900/1500mA current   limited option

    - RTCLDO:on for RTC31output 3.1V, One for RTC13,Output   1.3/1.8V

    - ALDO1:Analog LDOscaling in 1.2-3.3V, 300mA

    - ALDO2:Analog LDOscaling in 1.2-3.3V, 300mA

    - DLDO1:Digital LDO or Switchscaling in   0.7-3.5V,100mV/step,300mA

    - DLDO2:Digital LDO or Switchscaling in   0.7-3.5V,100mV/step,300mA

    - GPIOLDO:low noise LDO, scaling in   0.7-3.5V,100mV/step,30mA

  • System Management

    - Support software shutdown or hardware power Off

    - External wake-up source

    - Output monitor

    - PWROK signal for reset or power off

    - OVP/UVP

    - Programmable power on voltage or sequence

  • Host Interface

    - Programmable Interrupt and wake-up management

    - Internal Timer

  • 40 pin,5x5mm2 QFN Package







Description

AXP152 is a highly integrated power management IC that provides easy and flexible power solution for applications that require multi-rail outputs. It has fully met the increasingly complex needs of application processors on accurate power control.


AXP152 integrates  four step-down converters (Buck DC-DC converter), seven low dropout regulators. It also features protection circuitry such as over/under-voltage protection (OVP/UVP), over-temperature protection, and over-current protection (OCP) to guarantee the power system security and stability.


In addition, AXP152 includes a Two Wire Serial Interface (TWSI), through which the application processor  is capable of enabling/disabling some power outputs, programming the voltage to decrease the power consumption, and provides customers with unprecedented experience of power management


AXP152  is available in 5mm x 5mm 40-pin QFN package,

and the package is Pb free.

APPLICATIONS

·  Mobile Internet Device,xPad

·  Digital Photo Frame, Portable DVD Player, Set-top Box Entertaining and Education Machine

·  Network devices

·  Safety monitor

·  Application ProcessorSystems

View more

TYPICAL APPLICATION DIAGRAM

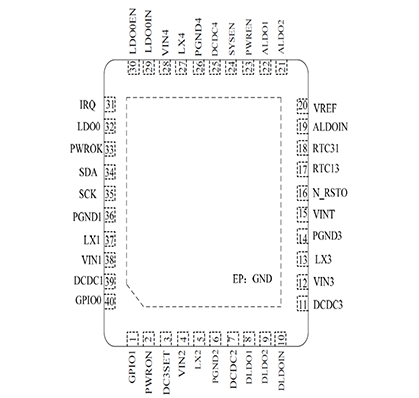

PIN CONFIGURATION
